Front / Rear Brake Disc Rotors for Kawasaki KX125 KX250 06-08 / KX250F KX450F 06-18 / KLX450R 07-UP / KX250X KX450X 21-UP / KXE450F 10-UP

Fitment

Kawasaki KX 125 2006-2008
Kawasaki KX 250 2006-2008
Kawasaki KX250F 2006-2018
Kawasaki KLX450R 2007-UP
Kawasaki KX450F 2006-2018
Kawasaki KX250X 2021-UP
Kawasaki KX450X 2021-UP
Kawasaki KXE450F 2010-UP

• Laser cut 420 stainless steel, heat treated to ensure warp resistance.

• The slots or grooves on the disc provide an escape route for heat, gas and waste material, preventing it from building up on the contact surfaces.

• Wave design allows for better heat dissipation and water dispersion, the venting slots are designed to reduce the brake surface temperature and make the dirt and water are dispersed quickly.
• Directly bolt on, no additional hardware necessary.
• We marked the Min Thickness on the surface, it means you should replace the brake disc rotor when the thickness with Minimum Thickness to ensure save ridding.

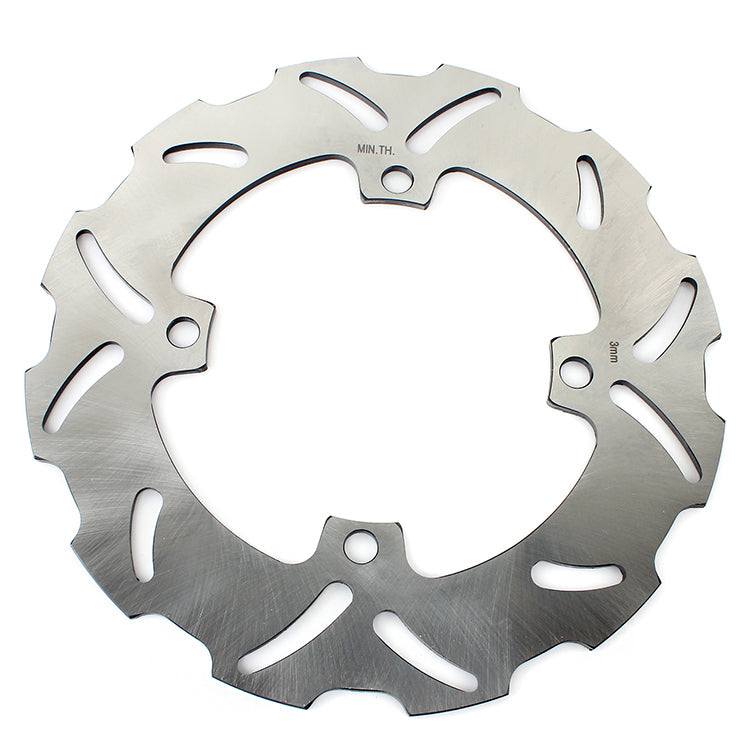

Front Brake Disc
Outer Diameter: 250mm
Inner Diameter: 109.5mm
Thickness : 3mm
Hole Quantity: 4
Hole Size : 9.4mm
Hole Spacing : 126mm

Rear Brake Disc
Outer Diameter: 240mm
Inner Diameter: 116mm
Thickness: 4mm
Hole Quantity: 4
Hole Size: 10.4mm
Hole Spacing: 133mm
